S9711S
Code: S9711S
Category: Starters
Manufacturer: Hyosung
Supplier: As-pl
STANDARD LINE

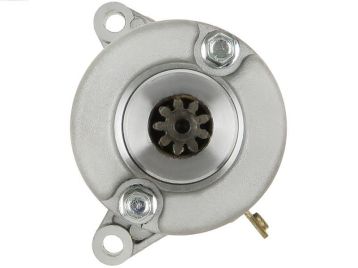

Brand new AS-PL Starter motor
Size b: 38.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 147.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 74.00 mm
Power: 0.50 kW
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19040S | As-pl | |
| CH-105N | EMS | |
| 31100-42A01 | Hyosung | |
| 31100-HD6-300 | Hyosung | |
| 31100-HG5-100 | Hyosung | |
| 31100-HL7-300 | Hyosung | |
| 255776 | Kuhner | |
| 19627 | Lester | |
| 19627N | Wai / Transpo | |
| 30929N | Wai / Transpo |
Usage
| Brand | Model | Type | Year | Note |
| Hyosung | GT 125 Naked | [125cc] | 01.2003- | |
| Hyosung | GT 125 Naked | [125cc] | 10.2003-12.2013 | |
| Hyosung | GT 125 R | [125cc] | 01.2006- | |
| Hyosung | GT 250 Naked | [249cc] | 01.2004- | |
| Hyosung | GT 250 Naked | [249cc] | 09.2004-12.2008 |
