S9714S
Code: S9714S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

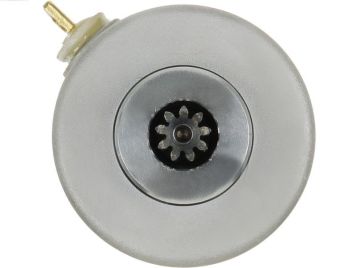

Brand new AS-PL Starter motor
Size b: 29.00 mm
C.1: 6.50 mm
C.2: 6.50 mm
L.1: 172.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 37.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10439186 | Alanko | |
| SMU0062 | Arrowhead | |
| UD19059S | As-pl | |
| RS41197 | DELCO | |
| STR5968 | Electrolog | |
| 108120 | Farcom | |
| STZ2916 | Krauf | |
| 255371 | Kuhner | |
| 18755 | Lester | |
| 400.580.092.200 | Psh | |
| 18755N | Wai / Transpo | |
| 2-2500 | Wai / Transpo | |
| 71-26-18755 | Wilson | |
| STR75437 | Woodauto | |
| WOOSTR75437 | Woodauto | |
| 3FA-81800-01 | Yamaha | |
| 3FA-81800-01-00 | Yamaha | |
| 3FA-81890-00 | Yamaha | |
| 3FA-81890-00-00 | Yamaha | |
| 3FA-81890-01-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | YFA1 Breeze | [124cc] | 01.1989-12.2004 | |
| YAMAHA | YFM125 Grizzly | [124cc] | 01.2004-12.2008 |
