S9722S
Code: S9722S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

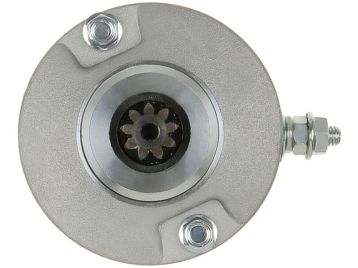

Brand new AS-PL Starter motor
Size b: 40.00 mm
C.1: 6.50 mm
C.2: 7.00 mm
L.1: 159.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 34.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19065S | As-pl | |
| 256116 | Kuhner | |
| 18812 | Lester | |
| SM142-01 | Mitsuba | |
| 31100-13E00 | Suzuki | |
| 18812N | Wai / Transpo |
Usage
| Brand | Model | Type | Year | Note |
| SUZUKI | Suzuki DR-Z 250 | 01.2001-12.2007 |
