S9767S


Code: S9767S

Category: Starters

Manufacturer: Johnson Electric

Supplier: As-pl

STANDARD LINE

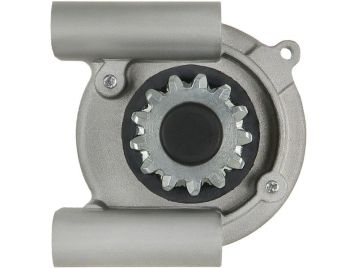

Brand new AS-PL Starter motor



Size b: 17.00 mm

C.1: 9.00 mm

C.2: 9.00 mm

L.1: 202.00 mm

No./teeth: 13

No./mount. holes: 2

No./mount. holes with thread: 0

O.1: 67.00 mm

Rotation: ACW

Voltage: 12 v



Reference number

CodeManufacturer
AC-CBS5112Acauto
10440762Alanko
SAB0038Arrowhead
UD19202SAs-pl
F032112150Bosch
112150Cargo
5239740Chrysler
96756DELCO
RS41023DELCO
206-07111Dixie
20607111Dixie
MS-699Dixie
STR7639Electrolog
6727020MO30SMJohnson Electric
6734640MO30SMJohnson Electric
UT2-0019NJust Parts
UT2-0019N-AJust Parts
UT2-0074NJust Parts
12-098-05Kohler
12-098-06Kohler
12-098-09Kohler
12-098-19SKohler
12-098-21Kohler
12-098-21-SKohler
1209812Kohler
1209814Kohler
1209819Kohler
STZ5771Krauf
254969Kuhner
5771Lester
400.500.132.200Psh
5239740M030SMUnited Technologies
5239740MO30SMUnited Technologies
5278440United Technologies
5278440M030SMUnited Technologies
5278440MO30SMUnited Technologies
5667040United Technologies
5667040M030SMUnited Technologies
5667040MO30SMUnited Technologies
6734620MO30SMUnited Technologies
SM52397United Technologies
SM52784United Technologies
SM56670United Technologies
2-2242Wai / Transpo
5771NWai / Transpo
71-09-5771Wilson
STR88201Woodauto
WOOSTR88201Woodauto


Usage

BrandModelTypeYearNote
Cub Cadet1315[12.5H.P.]01.1989-12.1991
Cub Cadet1320[12.5H.P.]01.1989-12.1991
Cub Cadet1325[12.5H.P.]01.1992-12.1993
Cub Cadet133001.1992-12.1993
Cub Cadet1340[12.5H.P.]01.1990-12.1991
Cub Cadet140501.1990-12.1991
Cub Cadet1405[14H.P.]01.1990-12.1991
Cub Cadet141501.1988-12.1989
Cub Cadet142001.1988-12.1991
Cub Cadet171501.1988-12.1990
Cub Cadet172001.1988-12.1991
KohlerC12-501.1998-12.2008
Toro264-6[14H.P.]01.1994-12.1996
Toro264-H[14H.P.]01.1994-12.1996
Toro312-801.1998-12.2008
Toro312-8[12.5H.P.]01.1998-12.2001
Toro314-801.1998-12.2008
Toro314-8[14H.P.]01.1999-12.2001
Toro314-8-T01.1998-12.2008
Toro314-H01.1995-12.2005
Toro315-8[15H.P.]01.2002-12.2004
ToroGT01.2005-12.2007
ToroProLine 185[CV14S-1429]01.1991-12.1992
