S9800S
Code: S9800S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

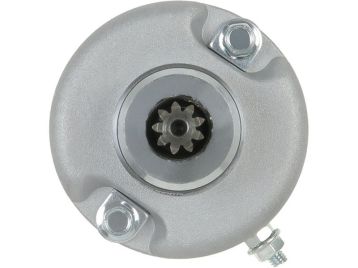

Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 6.50 mm
C.2: 7.00 mm
L.1: 171.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 60.00 mm
Power: 0.60 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| SMU0548 | Arrowhead | |
| UD19161S | As-pl | |
| 410-54238 | J&n | |
| 19494 | Lester | |
| 4013015 | Polaris | |
| 400.533.092.190 | Psh | |
| 106-10429 | Robert's | |
| 19494N | Wai / Transpo | |
| 71-26-19494 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| POLARIS | Ranger 570 4x4 | [567cc] | 01.2014-12.2014 | |
| POLARIS | Ranger 570 4x4 Crew | [567cc] | 01.2014-12.2015 | |
| POLARIS | RZR 570 EFI | [567cc] | 01.2012-12.2015 | |
| POLARIS | Sportsman 570 ACE | [567cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman 570 ACE EFI | [567cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman 570 ACE HD | [567cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman 570 EFI | [567cc] | 01.2014-12.2014 | |
| POLARIS | Sportsman 570 EFI EPS | [567cc] | 01.2014-12.2014 | |
| POLARIS | Sportsman 570 EFI EPS Forest | [567cc] | 01.2014-12.2014 | |
| POLARIS | Sportsman 570 EFI HD | [567cc] | 01.2014-12.2015 | |
| POLARIS | Sportsman 570 EFI UTE HD | [567cc] | 01.2014-12.2014 | |
| POLARIS | Sportsman 570 Forest | [567cc] | 01.2014-12.2014 | |
| POLARIS | Sportsman 570 SP EPS | [567cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman 570 SP MD | [567cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman 570 Touring EFI | [567cc] | 01.2015-12.2015 |
