S9820S
Code: S9820S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

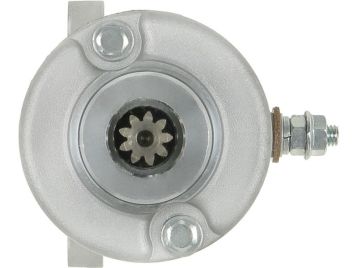

Brand new AS-PL Starter motor
Size a: 30.00 mm
Size b: 32.00 mm
C.1: 6.50 mm
C.2: 6.50 mm
L.1: 132.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 59.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| SMU0569 | Arrowhead | |
| UD102670S | As-pl | |
| 34050 | Lester | |
| 4013428 | Polaris | |
| 4014972 | Polaris | |
| 4015223 | Polaris | |
| 34050N | Wai / Transpo | |
| 71-26-34050 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| POLARIS | Ace 325 EFI | [325cc] | 01.2016-12.2016 | |
| POLARIS | Hawkeye 325 2x4 | [325cc] | 01.2015-12.2015 | |
| POLARIS | Ranger ETX | [325cc] | 01.2015-12.2016 | |
| POLARIS | Sportsman 325 ACE EFI | [325cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman 325 ACE HD | [325cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman ACE | [325cc] | 01.2014-12.2014 | |
| POLARIS | Sportsman ETX EFI | [325cc] | 01.2015-12.2015 | |
| POLARIS | Sportsman ETX EFI MD | [325cc] | 01.2015-12.2015 |
