S9850S
Code: S9850S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

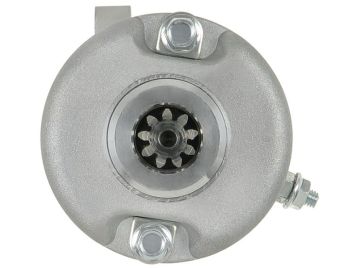

Brand new AS-PL Starter motor
Size b: 39.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 170.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 65.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| SMU0161 | Arrowhead | |
| UD102713S | As-pl | |
| 410-54161 | J&n | |
| YA2-0084R | Just Parts | |
| YA2-9124 | Just Parts | |
| 256767 | Kuhner | |
| 18751 | Lester | |
| SM8219 | Mitsuba | |
| 191-371 | Pic | |
| 191-371A | Pic | |
| 18751N | Wai / Transpo | |
| 22U-81800-60-00 | Yamaha | |
| 3JB-81800-00-00 | Yamaha | |
| 3JB-81800-01-00 | Yamaha | |
| 3JB-81890-00-00 | Yamaha | |
| 3JB-81890-01-00 | Yamaha | |
| 4UR-81800-00-00 | Yamaha | |
| 4VR-81800-00-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | XV500 Virago | [494cc] | 01.1983-12.1984 | |
| YAMAHA | XV535 Virago | [535cc] | 01.1987-12.1988 | |
| YAMAHA | XV535 Virago | [535cc] | 01.1989- | |
| YAMAHA | XV535 Virago | [535cc] | 01.1990-12.2000 | |
| YAMAHA | XVS650 V Star Custom | [649cc] | 01.2013-12.2015 | |
| YAMAHA | XVS650A V Star Classic | [649cc] | 01.1998-12.2010 | |
| YAMAHA | XVS650AT V Star Silverado | [649cc] | 01.2002-12.2010 |
