SA1004


Code: SA1004

Category: Starter armatures

Manufacturer: DELCO

Supplier: As-pl

STANDARD LINE

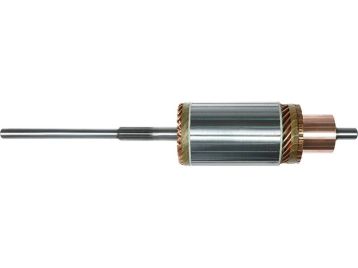

Brand new AS-PL Starter motor armature



Teeth / splines: 19

L.1: 531.30 mm

L.2: 176.50 mm

O.d.1: 96.00 mm

O.d.2: 58.00 mm

O.d.3: 16.00 mm

Power: 7.50 kW

Slots: 25

Voltage: 24 v



Reference number

CodeManufacturer
130553Cargo
CAR60604ASCasco
7M0323Caterpillar
CQ2110393Cq
1951254DELCO
ARM2651Electrolog
IM416Orme
1012914Powermax
SAR60604Sando
61-125Wai / Transpo
WSA1587Woodauto


Usage

BrandModelTypeYearNote
DELCO10478846starter motors
DELCO10478853starter motors
DELCO10478862starter motors
DELCO1109294starter motors
DELCO1109299starter motors
DELCO1109494starter motors
DELCO1109497starter motors
DELCO1109632starter motors
DELCO1109633starter motors
DELCO1109635starter motors
DELCO1109641starter motors
DELCO1109644starter motors
DELCO1109757starter motors
DELCO1109779starter motors
DELCO1109792starter motors
DELCO1109793starter motors
DELCO1109794starter motors
DELCO1109832starter motors
DELCO1109835starter motors
DELCO1109849starter motors
DELCO1109969starter motors
DELCO1109979starter motors
DELCO1109989starter motors
DELCO1990227starter motors
DELCO1990232starter motors
DELCO1990238starter motors
DELCO1990240starter motors
DELCO1990241starter motors
DELCO1990247starter motors
DELCO1993781starter motors
