  5. SA2004



SA2004


Code: SA2004

Category: Starter armatures

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

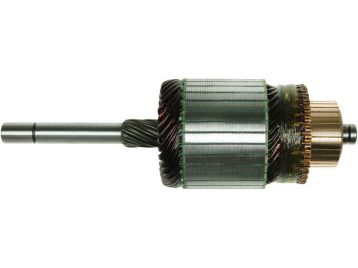

Brand new AS-PL Starter motor armature



Teeth / splines: 10

L.1: 205.90 mm

L.2: 17.40 mm

O.d.1: 64.90 mm

O.d.2: 40.10 mm

O.d.3: 12.50 mm

Power: 1.30 kW

Slots: 33

Voltage: 12 v



Reference number

CodeManufacturer
133031Cargo
CAR20008ASCasco
CQ2110193Cq
ARM3102Electrolog
2114-91001Hitachi
8942187670Isuzu
MM 340Mahle
23310-S0100Nissan
23310-U6000Nissan
IM3011Orme
1015398Powermax
81015398Powermax
SAR20008Sando
61-8103Wai / Transpo
WSA19505Woodauto


Usage

BrandModelTypeYearNote
HITACHIS114146starter motors
HITACHIS114180starter motors
HITACHIS114180Bstarter motors
HITACHIS114180Estarter motors
HITACHIS114180Fstarter motors
HITACHIS114180Gstarter motors
HITACHIS114218starter motors
HITACHIS114218Astarter motors
HITACHIS114219starter motors
HITACHIS114230starter motors
HITACHIS114230Astarter motors
HITACHIS114235starter motors
HITACHIS114235Astarter motors
HITACHIS114235Bstarter motors
HITACHIS114240starter motors
HITACHIS114244starter motors
HITACHIS114244Astarter motors
HITACHIS114247starter motors
HITACHIS114247Astarter motors
HITACHIS114247Bstarter motors
HITACHIS114247Cstarter motors
HITACHIS114295starter motors
HITACHIS114295Astarter motors
HITACHIS114295Bstarter motors
HITACHIS114381starter motors
HITACHIS114417starter motors
HITACHIS114427starter motors
ISUZU8942340650starter motors
YANMAR12145077010starter motors
YANMAR12445077010starter motors
YANMAR12477277020starter motors
