SA4006


Code: SA4006

Category: Starter armatures

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

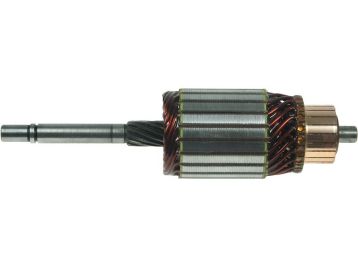

Brand new AS-PL Starter motor armature



Teeth / splines: 12

L.1: 202.20 mm

L.2: 16.40 mm

O.d.1: 51.50 mm

O.d.2: 34.00 mm

O.d.3: 10.00 mm

Power: 0.90 kW

Slots: 21

Voltage: 12 v



Reference number

CodeManufacturer
UD00782SAAs-pl
135620Cargo
CAR30067Casco
CQ2110502Cq
CQ2110551Cq
ARM9019Electrolog
IM7Ghibaudi
083225127010Lucas
083227678010Lucas
83225127Magneti Marelli
83225727Magneti Marelli
83226536Magneti Marelli
83226811Magneti Marelli
83227678Magneti Marelli
86226811Magneti Marelli
083225127000Mako
083226811000Mako
1016613Powermax
81016613Powermax
SAR30067Sando
WSA16845Woodauto


Usage

BrandModelTypeYearNote
As-plS4015starter motors
As-plS4022starter motors
As-plS4033starter motors
As-plS4034starter motors
MAGNETI MARELLI63101000starter motors
MAGNETI MARELLI63101002starter motors
MAGNETI MARELLI63101008starter motors
MAGNETI MARELLI63102003starter motors
MAGNETI MARELLI63102004starter motors
MAGNETI MARELLI63102007starter motors
MAGNETI MARELLI63102008starter motors
MAGNETI MARELLI63103002starter motors
MAGNETI MARELLI63103003starter motors
MAGNETI MARELLI63103007starter motors
MAGNETI MARELLI63103008starter motors
MAGNETI MARELLI63103015starter motors
MAGNETI MARELLI63103024starter motors
MAGNETI MARELLI63103025starter motors
MAGNETI MARELLI63201008starter motors
MAGNETI MARELLI63222888starter motors
MAGNETI MARELLI63222889starter motors
MAGNETI MARELLI63222900starter motors
MAGNETI MARELLI63222901starter motors
MAGNETI MARELLI63222905starter motors
MAGNETI MARELLI63222908starter motors
MAGNETI MARELLI63222909starter motors
MAGNETI MARELLI63222936starter motors
MAGNETI MARELLI63223085starter motors
MAGNETI MARELLI63223101starter motors
MAGNETI MARELLI63223108starter motors
MAGNETI MARELLI63223109starter motors
MAGNETI MARELLI63223200starter motors
MAGNETI MARELLI63223303starter motors
OPEL93222909starter motors
