SBH4009


Code: SBH4009

Category: Starter brush holders

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

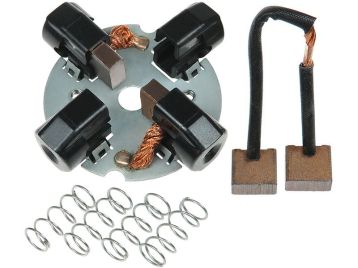

Brand new AS-PL Starter motor brush holder



G.1: 8.60 mm

H.1: 29.00 mm

H.2: 20.20 mm

I.d.1: 12.00 mm

O.d.1: 88.50 mm

Matching brush set: JSX31-32



Reference number

CodeManufacturer
UD11551SBHAs-pl
138537Cargo
BHS4024Electrolog
PAPA333Ghibaudi
085540341010Lucas
85540341Magneti Marelli
85540341010Magneti Marelli
85540691Magneti Marelli
85540691010Magneti Marelli
1017159Powermax


Usage

BrandModelTypeYearNote
LUCAS063221831010starter motors
LUCAS063222031010starter motors
LUCAS063222034010starter motors
LUCAS063222036010starter motors
LUCAS063222038010starter motors
LUCAS063222039010starter motors
LUCAS063222130010starter motors
LUCAS063222131010starter motors
LUCAS063222133010starter motors
LUCAS063222134010starter motors
LUCAS063222135010starter motors
LUCAS063222136010starter motors
LUCAS063222138010starter motors
LUCAS063222204010starter motors
LUCAS063222206010starter motors
MAGNETI MARELLI63114008starter motors
MAGNETI MARELLI63114010starter motors
MAGNETI MARELLI63221801starter motors
MAGNETI MARELLI63221831starter motors
MAGNETI MARELLI63222000starter motors
MAGNETI MARELLI63222001starter motors
MAGNETI MARELLI63222030starter motors
MAGNETI MARELLI63222031starter motors
MAGNETI MARELLI63222034starter motors
MAGNETI MARELLI63222036starter motors
MAGNETI MARELLI63222038starter motors
MAGNETI MARELLI63222039starter motors
MAGNETI MARELLI63222130starter motors
MAGNETI MARELLI63222131starter motors
MAGNETI MARELLI63222133starter motors
MAGNETI MARELLI63222133010starter motors
MAGNETI MARELLI63222134starter motors
MAGNETI MARELLI63222134010starter motors
MAGNETI MARELLI63222135starter motors
MAGNETI MARELLI63222135010starter motors
MAGNETI MARELLI63222136starter motors
MAGNETI MARELLI63222136010starter motors
MAGNETI MARELLI63222138starter motors
MAGNETI MARELLI63222138010starter motors
MAGNETI MARELLI63222204starter motors
MAGNETI MARELLI63222204010starter motors
MAGNETI MARELLI63222206starter motors
MAGNETI MARELLI63222206010starter motors
