SBH4017S


Code: SBH4017S

Category: Starter brush holders

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

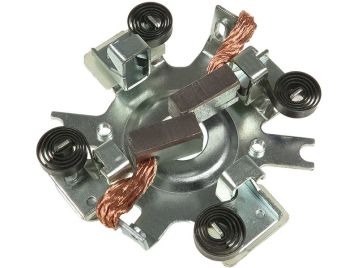

Brand new AS-PL Starter motor brush holder



G.1: 9.20 mm

H.1: 25.50 mm

H.2: 16.30 mm

I.d.1: 18.00 mm

O.1: 53.50 mm

O.d.1: 93.50 mm

Matching brush set: MASX25-26



Reference number

CodeManufacturer
PSP00323EFFE
UD50513SBHAs-pl
135604Cargo
135771Cargo
CBH30100ASCasco
BHS9002Electrolog
PAPA313KGhibaudi
7.7395.1Ika
SHE5640Krauf
72164101Magneti Marelli
940113080148Magneti Marelli
AMH0148Magneti Marelli
81016935Powermax
21204001BNReal
SBH30100.0Sando
69-9302Wai / Transpo
EC47177Woodauto


Usage

BrandModelTypeYearNote
As-plS4044starter motors
MAGNETI MARELLI63217101starter motors
MAGNETI MARELLI63217104starter motors
MAGNETI MARELLI63217105starter motors
MAGNETI MARELLI63217106starter motors
MAGNETI MARELLI63217107starter motors
MAGNETI MARELLI63217108starter motors
MAGNETI MARELLI63217110starter motors
MAGNETI MARELLI63217112starter motors
MAGNETI MARELLI63217116starter motors
MAGNETI MARELLI63217117starter motors
MAGNETI MARELLI63217118starter motors
MAGNETI MARELLI63217119starter motors
MAGNETI MARELLI63217120starter motors
MAGNETI MARELLI63217121starter motors
MAGNETI MARELLI63217125starter motors
MAGNETI MARELLI63217126starter motors
MAGNETI MARELLI63217138starter motors
MAGNETI MARELLI63217147starter motors
MAGNETI MARELLI63217148starter motors
MAGNETI MARELLI63217154starter motors
MAGNETI MARELLI63217156starter motors
MAGNETI MARELLI63217158starter motors
MAGNETI MARELLI63217163starter motors
MAGNETI MARELLI63217173starter motors
MAGNETI MARELLI63217180starter motors
MAGNETI MARELLI63217182starter motors
MAGNETI MARELLI63217186starter motors
MAGNETI MARELLI63217188starter motors
MAGNETI MARELLI63217197starter motors
MAGNETI MARELLI63217401starter motors
MAGNETI MARELLI63217402starter motors
MAGNETI MARELLI63217403starter motors
MAGNETI MARELLI63217404starter motors
MAGNETI MARELLI63217407starter motors
MAGNETI MARELLI63217408starter motors
MAGNETI MARELLI63217410starter motors
MAGNETI MARELLI63217425starter motors
MAGNETI MARELLI63217433starter motors
MAGNETI MARELLI63217447starter motors
MAGNETI MARELLI63317105starter motors
MAGNETI MARELLI63417106starter motors
MAGNETI MARELLI63417107starter motors
MAGNETI MARELLI63417108starter motors
MAGNETI MARELLI63417110starter motors
MAGNETI MARELLI63417112starter motors
MAGNETI MARELLI63417116starter motors
MAGNETI MARELLI63417117starter motors
MAGNETI MARELLI63417118starter motors
MAGNETI MARELLI63417119starter motors
MAGNETI MARELLI63417120starter motors
MAGNETI MARELLI63417121starter motors
MAGNETI MARELLI63417125starter motors
MAGNETI MARELLIMT71ABstarter motors
MAGNETI MARELLIMT71DBstarter motors
MAGNETI MARELLIMT71TAstarter motors
MAGNETI MARELLIMT74AAstarter motors
MAGNETI MARELLIMT74Hstarter motors
MAGNETI MARELLIMT74Lstarter motors
