  5. SBH4022P



SBH4022P


Code: SBH4022P

Category: Starter brush holders

Manufacturer: Magneti Marelli

Supplier: As-pl

PREMIUM LINE

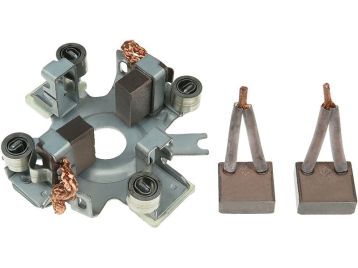

Brand new AS-PL Starter motor brush holder



G.1: 10.30 mm

H.1: 33.50 mm

H.2: 25.40 mm

I.d.1: 18.30 mm

O.1: 54.00 mm

O.d.1: 94.00 mm

Matching brush set: MASX23-24



Reference number

CodeManufacturer
PSP00223EFFE
UD19906SBHAs-pl
134041Cargo
134681Cargo
CBH30101ASCasco
CQ2050089Cq
BHS9003Electrolog
PAPA301Ghibaudi
7.7397.1Ika
SHE1118Krauf
072164701010Magneti Marelli
72164701Magneti Marelli
72164701000Magneti Marelli
72362701Magneti Marelli
72366601Magneti Marelli
9961779Peugeot
81010187Powermax
21204101BNReal
SBH30101.0Sando
69-9306Wai / Transpo
EC47179Woodauto


Usage

BrandModelTypeYearNote
MAGNETI MARELLI63216802starter motors
MAGNETI MARELLI63216808starter motors
MAGNETI MARELLI63216811starter motors
MAGNETI MARELLI63216814starter motors
MAGNETI MARELLI63216815starter motors
MAGNETI MARELLI63216816starter motors
MAGNETI MARELLI63216817starter motors
MAGNETI MARELLI63216818starter motors
MAGNETI MARELLI63216825starter motors
MAGNETI MARELLI63216826starter motors
MAGNETI MARELLI63216827starter motors
MAGNETI MARELLI63216831starter motors
MAGNETI MARELLI63216833starter motors
MAGNETI MARELLI63216851starter motors
MAGNETI MARELLI63216859starter motors
MAGNETI MARELLI63216873starter motors
MAGNETI MARELLI63216874starter motors
MAGNETI MARELLI63216876starter motors
MAGNETI MARELLI63216884starter motors
MAGNETI MARELLI63216896starter motors
MAGNETI MARELLI63216898starter motors
