SBH6009


Code: SBH6009

Category: Starter brush holders

Manufacturer: Denso

Supplier: As-pl

STANDARD LINE

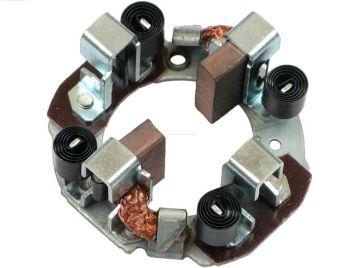

Brand new AS-PL Starter motor brush holder



G.1: 7.30 mm

H.1: 32.40 mm

H.2: 25.00 mm

I.d.1: 37.80 mm

O.d.1: 68.00 mm

Matching brush set: SB6022S



Reference number

CodeManufacturer
UD00673SBHAs-pl
UD00677SBHAs-pl
UD00682SBHAs-pl
UD00697SBHAs-pl
UD00701SBHAs-pl
UD41628SBHAs-pl
UD50255SBH As-pl
139150Cargo
028510-5800Denso
028510-6020Denso
BHS6066Electrolog
31208-P5G-0030Honda
AM879742John Deere
1016689Powermax
28140-54380 Toyota
28140-62030Toyota
37-29-1334Wilson
EC45009Woodauto


Usage

BrandModelTypeYearNote
As-plS6007starter motors
As-plS6012starter motors
As-plS6032starter motors
As-plS6044starter motors
As-plS6054starter motors
As-plS6060starter motors
As-plS6063starter motors
As-plS6076starter motors
As-plS6096starter motors
As-plS6140starter motors
As-plS6178starter motors
As-plS6217Sstarter motors
As-plS6278Sstarter motors
DENSO2280002120starter motors
DENSO2280002121starter motors
DENSO2280002122starter motors
DENSO2280002123starter motors
DENSO2280002124starter motors
DENSO2280002680starter motors
DENSO2280002682starter motors
DENSO2280002690starter motors
DENSO2280002700starter motors
DENSO2280002980starter motors
DENSO2280002990starter motors
DENSO2280003260starter motors
DENSO2280003840starter motors
DENSO2280003841starter motors
DENSO2280003842starter motors
DENSO2280003850starter motors
DENSO2280003851starter motors
DENSO2280003852starter motors
DENSO2280003920starter motors
DENSO2280004050starter motors
DENSO2280004291starter motors
DENSO2280004570starter motors
DENSO2280004740starter motors
DENSO2280004790starter motors
DENSO2280004830starter motors
DENSO2280005120starter motors
DENSO2280005121starter motors
DENSO2280005382starter motors
DENSO2280005791starter motors
DENSO2280005860starter motors
DENSO2280005861starter motors
DENSO2280005862starter motors
DENSO2280006010starter motors
DENSO2280006482starter motors
DENSO2280006921starter motors
DENSO2280006951starter motors
DENSO2280007111starter motors
DENSO2280007220starter motors
DENSO2280007390starter motors
DENSO2280007800starter motors
DENSO2280007801starter motors
DENSO2280008150starter motors
DENSO4280000250starter motors
DENSO4280000260starter motors
DENSO4280000500starter motors
DENSO4280001250starter motors
DENSO4280001280starter motors
DENSO4280002730starter motors
DENSO4280004850starter motors
