SBR0034


Code: SBR0034

Category: Starter brackets

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

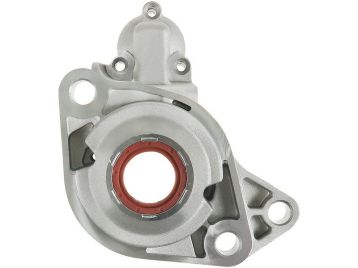

Brand new AS-PL Starter motor D.E. bracket



Size a: 76.00 mm

H.1: 85.00 mm

I.d.1: 28.70 mm

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 122.70 mm

O.2: 111.40 mm



Reference number

CodeManufacturer
UD10190SBRAs-pl
1005821881Bosch
1005831157Bosch
235036Cargo
BDES1059Electrolog
1015658Powermax
BKT44827Woodauto


Usage

BrandModelTypeYearNote
As-plS0027starter motors
BOSCH0001121006starter motors
BOSCH0001121007starter motors
BOSCH0001121028starter motors
BOSCH0001121029starter motors
