SBR0158S


Code: SBR0158S

Category: Starter brackets

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

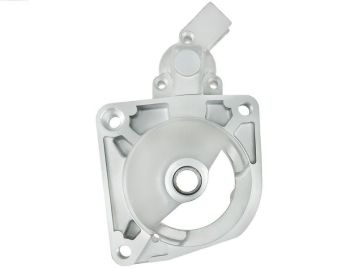

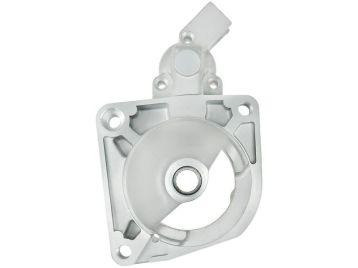

Brand new AS-PL Starter motor D.E. bracket



Size a: 82.00 mm

H.1: 141.00 mm

I.d.1: 12.00 mm

No./mount. holes: 3

No./mount. holes with thread: 3

O.1: 87.00 mm

O.2: 120.00 mm

O.3: 85.00 mm



Reference number

CodeManufacturer
UD03524SBRAs-pl
UD47707SBRAs-pl
9003338875Bosch
BDES1080Electrolog
9944550Fiat
SBB0554Krauf


Usage

BrandModelTypeYearNote
As-plS0422strater motors
BOSCH0001218141strater motors
BOSCH0001218741strater motors
