SBR4005


Code: SBR4005

Category: Starter brackets

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

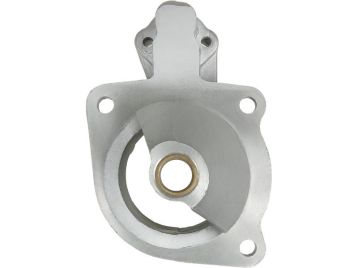

Brand new AS-PL Starter motor D.E. bracket



Size a: 88.80 mm

H.1: 148.40 mm

I.d.1: 17.05 mm

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 89.70 mm

O.2: 89.70 mm

O.3: 126.70 mm



Reference number

CodeManufacturer
UD10909SBRAs-pl
136871Cargo
BDES4002Electrolog
054266597010Lucas
54266597Lucas
BKT40898Woodauto


Usage

BrandModelTypeYearNote
As-plS4011starter motors
LUCAS26148starter motors
LUCAS26283starter motors
LUCAS26375starter motors
LUCAS26422starter motors
LUCAS27417starter motors
LUCAS27435starter motors
LUCAS27478starter motors
LUCAS27486starter motors
LUCASLRS00124starter motors
LUCASLRS00153starter motors
LUCASLRS124starter motors
LUCASLRS153starter motors
LUCASNSB503starter motors
