SD0038


Code: SD0038

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

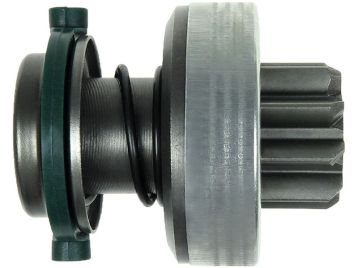

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 62.00 mm

L.2: 15.70 mm

Teeth: 9

Splines: 10

O.d.1: 52.00 mm

O.d.2: 29.80 mm

Rotation: CW



Reference number

CodeManufacturer
1006209524Bosch
1006384642Bosch
6033AD0044Bosch
9002336209Bosch
9003336280Bosch
132079Cargo
132079ZCargo
233861Cargo
CQ2010044Cq
5460-2109Dixie
DRV1202Electrolog
225230Era
1594 Ghibaudi
SDB1079Krauf
SDB9079Krauf
940113020167Magneti Marelli
1016139Powermax
81016139Powermax
11-524Stemot
42-42-63Visnova
54-9176Wai / Transpo
54-9176-1Wai / Transpo
54-9176-ZENWai / Transpo
61-15-6528Wilson
SDV38028Woodauto
0573Zen
1.01.0573.0Zen
ZN0573Zen


Usage

BrandModelTypeYearNote
As-plS0206starter motors
As-plS0306starter motors
As-plS0493starter motors
BOSCH0001218009starter motors
BOSCH0001218011starter motors
BOSCH0001218026starter motors
BOSCH0001218027starter motors
BOSCH0001218028starter motors
BOSCH0001218122starter motors
BOSCH0001218134starter motors
BOSCH0001218135starter motors
BOSCH0001218136starter motors
BOSCH0001218153starter motors
BOSCH0001218177starter motors
BOSCH0001218722starter motors
BOSCH0001218735starter motors
BOSCH0001218736starter motors
BOSCH0001218777starter motors
