  5. SD0049



SD0049


Code: SD0049

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

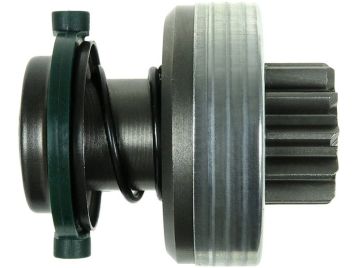

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 62.00 mm

L.2: 14.30 mm

Teeth: 11

Splines: 10

O.d.1: 53.70 mm

O.d.2: 29.20 mm

Rotation: CW



Reference number

CodeManufacturer
9003336206Bosch
132388Cargo
CQ2010522Cq
DRV1331Electrolog
225296Era
1641Ghibaudi
SDB1388Krauf
940113020217Magneti Marelli
1011987Powermax
81011987Powermax
19-206Stemot
42-42-74Visnova
54-91121Wai / Transpo
61-15-6547Wilson
SDV38037Woodauto
0706Zen
1.01.0706.0Zen
ZN0706Zen


Usage

BrandModelTypeYearNote
As-plS0166starter motors
BOSCH0001218007starter motors
BOSCH0001218023starter motors
BOSCH0001218125starter motors
BOSCH0001218126starter motors
BOSCH0001218158starter motors
BOSCH0001218175starter motors
BOSCH0001218725starter motors
BOSCH0001218758starter motors
BOSCH0001218775starter motors
