SD0052


Code: SD0052

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

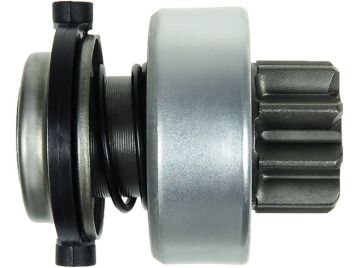

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 58.40 mm

L.2: 17.00 mm

Teeth: 9

Splines: 10

O.d.1: 48.00 mm

O.d.2: 30.00 mm

Rotation: CW



Reference number

CodeManufacturer
1006209534Bosch
1006209547Bosch
1006209549Bosch
1006209554Bosch
1006209559Bosch
9001066242Bosch
9001066247Bosch
9001066248Bosch
9001066476Bosch
9001690111Bosch
133362Cargo
135115Cargo
136345Cargo
333201Cargo
CQ2010028Cq
5460-1009Dixie
DRV1036Electrolog
225190Era
1751Ghibaudi
2030 Ghibaudi
SDB1362Krauf
940113020136Magneti Marelli
1010889Powermax
81010889Powermax
060.000.076Psh
11-554Stemot
SD-2104Unipoint
42-42-70Visnova
52-42-13Visnova
54-9161Wai / Transpo
54-9161-1Wai / Transpo
54-9161-ZENWai / Transpo
61-15-6522Wilson
SDV38044Woodauto
0475Zen
1.01.0475.0Zen
ZN0475Zen


Usage

BrandModelTypeYearNote
As-plS0044starter motors
As-plS0411starter motors
As-plS0457starter motors
As-plS0641Sstarter motors
BOSCH0001107033starter motors
BOSCH0001107061starter motors
BOSCH0001108042starter motors
BOSCH0001108054starter motors
BOSCH0001108063starter motors
BOSCH0001108065starter motors
BOSCH0001108100starter motors
BOSCH0001108108starter motors
BOSCH0001108115starter motors
BOSCH0001108117starter motors
BOSCH0001108129starter motors
BOSCH0001108131starter motors
BOSCH0001108141starter motors
BOSCH0001108145starter motors
BOSCH0001108210starter motors
BOSCH0001109009starter motors
BOSCH0001110011starter motors
BOSCH0001110028starter motors
BOSCH0001110041starter motors
BOSCH0001110042starter motors
BOSCH0001110111starter motors
BOSCH0001110130starter motors
BOSCH0001110131starter motors
BOSCH0001111003starter motors
BOSCH0001115035starter motors
BOSCH9000692069starter motors
BOSCH9000694008starter motors
FORD89VB11000AAstarter motors
FORD92VB11000AAstarter motors
UNIPOINTSTR2014starter motors
