  5. SD0065



SD0065


Code: SD0065

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

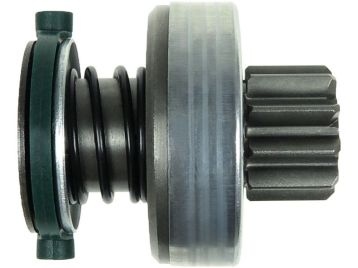

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 60.50 mm

L.2: 19.00 mm

Teeth: 10

Splines: 10

O.d.1: 53.00 mm

O.d.2: 27.30 mm

Rotation: CW



Reference number

CodeManufacturer
9002336223Bosch
9003336223Bosch
136787Cargo
333508Cargo
CQ2010682Cq
DRV1209Electrolog
225510Era
2134Ghibaudi
SDB1787Krauf
SDB9787Krauf
940113020376Magneti Marelli
1016892Powermax
81016892Powermax
19-223Stemot
52-42-42Visnova
SDV38138Woodauto
1.01.1071.0Zen
1071Zen
ZN1071Zen


Usage

BrandModelTypeYearNote
As-plS0143starter motors
BOSCH0001218162starter motors
BOSCH0001218165starter motors
BOSCH0001218765starter motors
