SD0069


Code: SD0069

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

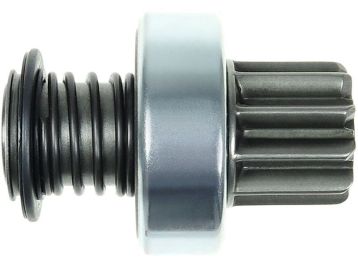

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 75.40 mm

L.2: 28.00 mm

Teeth: 10

Splines: 10

O.d.1: 53.70 mm

O.d.2: 32.00 mm

Rotation: CW



Reference number

CodeManufacturer
UD15156SDAs-pl
1006209482Bosch
1006209914Bosch
137279Cargo
CQ2010712Cq
5460-3106Dixie
DRV1030Electrolog
225422Era
2058 Ghibaudi
SDB1279Krauf
940113020303Magneti Marelli
1015546Powermax
81015546Powermax
54-1802Wai / Transpo
54-9198Wai / Transpo
54-9198-1Wai / Transpo
54-9198-ZENWai / Transpo
SDV38171Woodauto
0931Zen
1.01.0931.0Zen
ZN0931Zen


Usage

BrandModelTypeYearNote
BOSCH0001314047starter motors
BOSCH0001316012starter motors
BOSCH0001316013starter motors
