SD0071


Code: SD0071

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

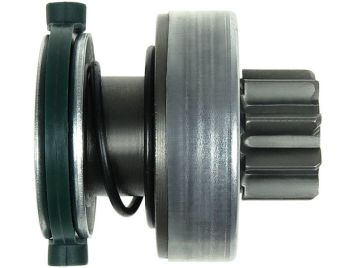

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 51.00 mm

L.2: 15.20 mm

Teeth: 9

Splines: 10

O.d.1: 47.40 mm

O.d.2: 26.00 mm

Rotation: CW



Reference number

CodeManufacturer
UD00076SDAs-pl
1006209618Bosch
1006209638Bosch
1006209667Bosch
1006209672Bosch
1006209677Bosch
1006209690Bosch
1006209787Bosch
1006209815Bosch
1006209937Bosch
137481Cargo
137481ZCargo
333178Cargo
CQ2010021Cq
5460-1003Dixie
DRV1134Electrolog
225418Era
9947831Fiat
1989Ghibaudi
4.5021.1Ika
SDB1481Krauf
SDB8481Krauf
SDB9481Krauf
940113020301Magneti Marelli
940113170301Magneti Marelli
90543728Opel
1017259Powermax
81017259Powermax
11-618Stemot
SD-2112Unipoint
SD-2123Unipoint
52-42-30Visnova
058911335Vw
54-9195Wai / Transpo
54-9195-1Wai / Transpo
54-9195-ZENWai / Transpo
61-15-6590Wilson
SDV38158Woodauto
0925Zen
1.01.0925.0Zen
ZN0925Zen


Usage

BrandModelTypeYearNote
As-plS0054starter motors
As-plS0087starter motors
As-plS0175starter motors
As-plS0408starter motors
As-plS0533starter motors
BOSCH0001107037starter motors
BOSCH0001107048starter motors
BOSCH0001107054starter motors
BOSCH0001107055starter motors
BOSCH0001107067starter motors
BOSCH0001107068starter motors
BOSCH0001107069starter motors
BOSCH0001107072starter motors
BOSCH0001107073starter motors
BOSCH0001107074starter motors
BOSCH0001107076starter motors
BOSCH0001107094starter motors
BOSCH0001107095starter motors
BOSCH0001107096starter motors
BOSCH0001107105starter motors
BOSCH0001107106starter motors
BOSCH0001108162starter motors
BOSCH0001108166starter motors
BOSCH0001108167starter motors
BOSCH0001108172starter motors
BOSCH0001108173starter motors
BOSCH0001108174starter motors
BOSCH0001108175starter motors
BOSCH0001108178starter motors
BOSCH0001108188starter motors
BOSCH0001108189starter motors
BOSCH0001108199starter motors
BOSCH0001108200starter motors
BOSCH0001108204starter motors
BOSCH0001108220starter motors
BOSCH0001108221starter motors
BOSCH0001109018starter motors
BOSCH0001109064starter motors
BOSCH0001109065starter motors
BOSCH0001115002starter motors
BOSCH0001115007starter motors
BOSCH0001115012starter motors
BOSCH0001115015starter motors
BOSCH0001115020starter motors
BOSCH0001115024starter motors
BOSCH0001115039starter motors
UNIPOINTSTR2103starter motors
