SD0072


Code: SD0072
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

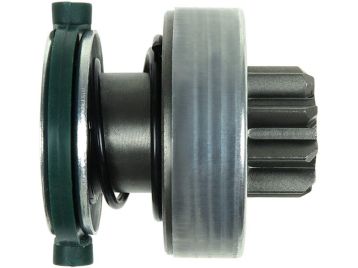

Brand new AS-PL Starter motor drive


I.d.1: 12.00 mm
L.1: 49.00 mm
L.2: 13.40 mm
Teeth: 9
Splines: 10
O.d.1: 47.40 mm
O.d.2: 26.00 mm
Rotation: CW


Reference number

CodeManufacturer
1006209624Bosch
1006209633Bosch
1006209692Bosch
1006209696Bosch
1006209706Bosch
1006209715Bosch
1006209777Bosch
1006209944Bosch
1006210156Bosch
1986SE1629Bosch
F000AL1683Bosch
137483Cargo
333191Cargo
CQ2010031Cq
DRV1053Electrolog
225452Era
9948703Fiat
2059Ghibaudi
4.5025.1Ika
SDB1483Krauf
SDB9483Krauf
1013634Powermax
81013634Powermax
11-624Stemot
52-42-54Visnova
54-91103Wai / Transpo
SDV38157Woodauto


Usage

BrandModelTypeYearNote
As-plS0141starter motors
As-plS0498starter motors
As-plS0524starter motors
As-plS0526starter motors
As-plS0711Sstarter motors
BOSCH0001106011starter motors
BOSCH0001106014starter motors
BOSCH0001106015starter motors
BOSCH0001107047starter motors
BOSCH0001107063starter motors
BOSCH0001107077starter motors
BOSCH0001107089starter motors
BOSCH0001107091starter motors
BOSCH0001107097starter motors
BOSCH0001107098starter motors
BOSCH0001107109starter motors
BOSCH0001107110starter motors
BOSCH0001107111starter motors
BOSCH0001108130starter motors
BOSCH0001108171starter motors
BOSCH0001108176starter motors
BOSCH0001108184starter motors
BOSCH0001112035starter motors
BOSCH0001112041starter motors
BOSCH0001115006starter motors
BOSCH0001116003starter motors
BOSCHF000AL0109starter motors
