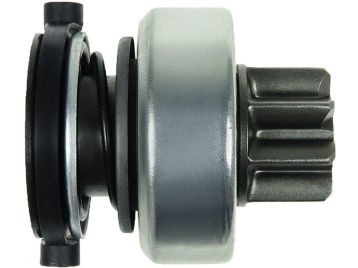

SD0078
Code: SD0078
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE
Brand new AS-PL Starter motor drive
I.d.1: 11.00 mm
L.1: 54.50 mm
L.2: 17.90 mm
Teeth: 8
Splines: 10
O.d.1: 48.20 mm
O.d.2: 27.00 mm
Rotation: CW
Reference number
| Code | Manufacturer | ||||
| 1006209613 | Bosch | ||||
| |||||
| 138233 | Cargo | ||||
| CQ2010883 | Cq | ||||
| 5460-1078 | Dixie | ||||
| DRV1137 | Electrolog | ||||
| 225380 | Era | ||||
| 2137 | Ghibaudi | ||||
| SDB2233 | Krauf | ||||
| SDB9233 | Krauf | ||||
| 940113020275 | Magneti Marelli | ||||
| 1012818 | Powermax | ||||
| 81012818 | Powermax | ||||
| 060.000.100 | Psh | ||||
| 11-613 | Stemot | ||||
| SD-2110 | Unipoint | ||||
| 52-42-60 | Visnova | ||||
| 54-9160 | Wai / Transpo | ||||
| 54-9160-1 | Wai / Transpo | ||||
| 54-9160-ZEN | Wai / Transpo | ||||
| 61-15-6550 | Wilson | ||||
| SDV38168 | Woodauto | ||||
| 0852 | Zen | ||||
| 1.01.0852.0 | Zen | ||||
| ZN0852 | Zen | ||||
Usage
| Brand | Model | Type | Year | Note |
| BOSCH | 0001107031 | starter motors | ||
| BOSCH | 0001107032 | starter motors | ||
| BOSCH | 0001107049 | starter motors | ||
| BOSCH | 6004AA0018 | starter motors | ||
| BOSCH | 9007045009 | starter motors | ||
| BOSCH | 9007045018 | starter motors | ||
| BOSCH | 9007045020 | starter motors |
