Code: SD0097
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

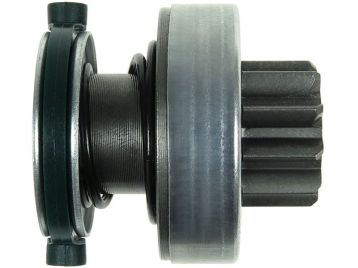

Brand new AS-PL Starter motor drive


I.d.1: 12.00 mm
L.1: 51.50 mm
L.2: 15.20 mm
Teeth: 10
Splines: 10
O.d.1: 49.00 mm
O.d.2: 28.00 mm
Rotation: CW


Reference number

CodeManufacturer
1006209631Bosch
1006209635Bosch
1006209678Bosch
1006209843Bosch
F000AL1209Bosch
F005M10053Bosch
230835Cargo
233297Cargo
331569Cargo
333189Cargo
CQ2010020Cq
DRV1203Electrolog
225487Era
225490Era
225624Era
77362114Fiat
2169Ghibaudi
4.5035.1Ika
SDB1835Krauf
SDB8835Krauf
220409Lucas
940113020357Magneti Marelli
940113170357Magneti Marelli
0011512713Mercedes
A0011512713Mercedes
5835F3Peugeot
1017252Powermax
81017252Powermax
52-42-85Visnova
54-91134Wai / Transpo
54-91179Wai / Transpo
SDV38108Woodauto
SDV38136Woodauto
1.01.1037.0Zen
1037Zen
ZN1037Zen


Usage

BrandModelTypeYearNote
As-plS0396starter motors
As-plS0550starter motors
BOSCH0001108183starter motors
BOSCH0001108217starter motors
BOSCH0001108218starter motors
BOSCH0001109036starter motors
BOSCH0001109250starter motors
BOSCH0001109290starter motors
BOSCH0001110112starter motors
BOSCH0001115001starter motors
BOSCH0001115008starter motors
Lauber221044starter motors
