  5. SD0098



SD0098


Code: SD0098

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

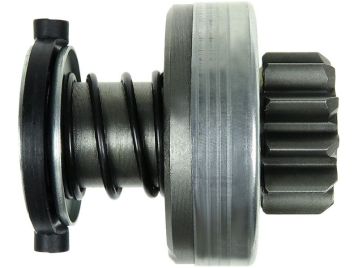

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 64.00 mm

L.2: 16.50 mm

Teeth: 11

Splines: 16

O.d.1: 57.10 mm

O.d.2: 35.60 mm

Rotation: CW



Reference number

CodeManufacturer
6033AD0061Bosch
231898Cargo
333509Cargo
CQ2010588Cq
DRV1013Electrolog
225627Era
2200 Ghibaudi
01319754Khd
1319754Khd
SDB8898Krauf
SDB9898Krauf
1011347Powermax
81011347Powermax
13-061Stemot
52-42-86Visnova
54-9312Wai / Transpo
54-9312-1Wai / Transpo
54-9312-ZENWai / Transpo
SDV38196Woodauto
1.01.1472.0Zen
1472Zen
ZN1472Zen
18326Znp


Usage

BrandModelTypeYearNote
As-plS0505starter motors
BOSCH0001223002starter motors
