SD0111


Code: SD0111

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

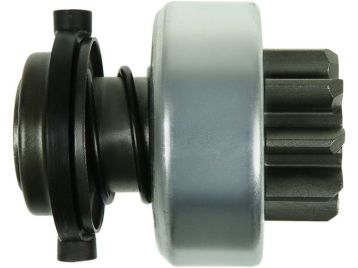

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 62.00 mm

L.2: 15.40 mm

Teeth: 9

Splines: 10

O.d.1: 52.70 mm

O.d.2: 34.20 mm

Rotation: CW



Reference number

CodeManufacturer
9003336282Bosch
234403Cargo
CQ2010495Cq
DRV1404Electrolog
225373Era
1647Ghibaudi
SDB1403Krauf
223302Lucas
940113020271Magneti Marelli
1016252Powermax
81016252Powermax
19-282Stemot
54-91150Wai / Transpo
SDV38166Woodauto
0838Zen
1.01.0838.0Zen
ZN0838Zen
ZNP18363Znp


Usage

BrandModelTypeYearNote
BOSCH0001218161starter motors
BOSCH0001218808starter motors
BOSCH9000218161starter motors
BOSCH9000331418starter motors
