SD0120


Code: SD0120

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

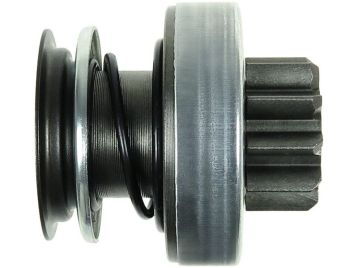

Brand new AS-PL Starter motor drive



I.d.1: 11.00 mm

L.1: 48.40 mm

L.2: 13.40 mm

Teeth: 10

Splines: 16

O.d.1: 47.30 mm

O.d.2: 27.90 mm

Rotation: CW



Reference number

CodeManufacturer
UD01840SDAs-pl
1006209812Bosch
1006209827Bosch
234535Cargo
333195Cargo
CQ2010950Cq
DRV1221Electrolog
225665Era
2343Ghibaudi
4.5048.1Ika
SDB1535Krauf
SDB9535Krauf
940113020468Magneti Marelli
1012702Powermax
81012702Powermax
060.000.081Psh
11-812Stemot
62-42-16Visnova
54-91147Wai / Transpo
SDV3927Woodauto
1.01.1576.0Zen
1576Zen
ZN1576Zen


Usage

BrandModelTypeYearNote
As-plS0483starter motors
BOSCH0001108400starter motors
BOSCH0001108411starter motors
