SD0122


Code: SD0122

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

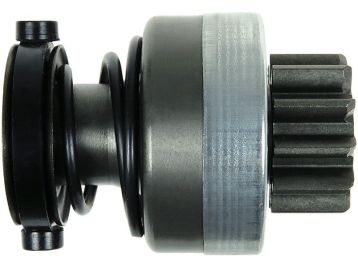

Brand new AS-PL Starter motor drive



I.d.1: 14.30 mm

L.1: 83.20 mm

L.2: 21.20 mm

Teeth: 11

Splines: 10

O.d.1: 61.30 mm

O.d.2: 40.40 mm

Rotation: CW



Reference number

CodeManufacturer
SD0122 As-pl
6033AD0242Bosch
6033AD0250Bosch
6033AD0304Bosch
6033AD0467Bosch
6033AD4052Bosch
6033AD4232Bosch
233949Cargo
236130Cargo
331683Cargo
335232Cargo
CQ2010622Cq
5460-2305Dixie
DRV1065Electrolog
225551Era
F926900060100Fendt
2292Ghibaudi
2384Ghibaudi
SDB1130Krauf
SDB9130Krauf
940113020404Magneti Marelli
51-26213-0002Man
1012198Powermax
81012198Powermax
861230Prestolite
861232Prestolite
13-467Stemot
62-42-17Visnova
21228743Volvo
85103855Volvo
54-91158Wai / Transpo
54-91158-1Wai / Transpo
BOS6033AD4052Woodauto
SDV38227Woodauto
1.01.1179.0Zen
1179Zen
ZN1179Zen


Usage

BrandModelTypeYearNote
As-plS0078starter motors
As-plS0107starter motors
As-plS0180starter motors
As-plS0670Sstarter motors
BOSCH0001231007starter motors
BOSCH0001231013starter motors
BOSCH0001231014starter motors
BOSCH0001231019starter motors
BOSCH0001231030starter motors
BOSCH0001231034starter motors
BOSCH0001231036starter motors
BOSCH0001231040starter motors
BOSCH0001231041starter motors
BOSCH0001260025starter motors
BOSCH0001262032starter motors
BOSCH0001263003starter motors
