  5. SD0123



SD0123


Code: SD0123

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

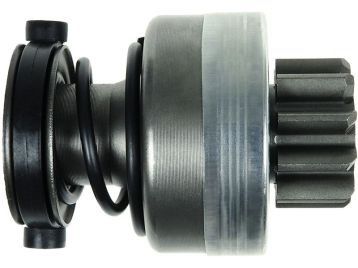

Brand new AS-PL Starter motor drive



I.d.1: 14.30 mm

L.1: 83.00 mm

L.2: 21.00 mm

Teeth: 10

Splines: 10

O.d.1: 61.00 mm

O.d.2: 38.00 mm

Rotation: CW



Reference number

CodeManufacturer
6033AD0243Bosch
6033AD0306Bosch
9006033136Bosch
9006033306Bosch
234087Cargo
333218Cargo
CQ2010592Cq
5460-2304Dixie
DRV1402Electrolog
225550Era
2256 Ghibaudi
SDB1087Krauf
SDB8087Krauf
940113020403Magneti Marelli
51262130003Man
1011461Powermax
81011461Powermax
861231Prestolite
13-306Stemot
62-42-07Visnova
SDV38197Woodauto
1.01.1178.0Zen
1178Zen
ZN1178Zen


Usage

BrandModelTypeYearNote
As-plS0085starter motors
As-plS0181starter motors
BOSCH0001231008starter motors
BOSCH0001231029starter motors
BOSCH0001231035starter motors
