  5. SD0130



SD0130


Code: SD0130

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

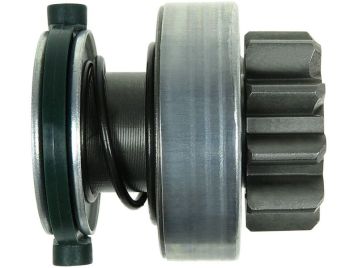

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 51.50 mm

L.2: 15.30 mm

Teeth: 10

Splines: 10

O.d.1: 49.20 mm

O.d.2: 38.10 mm

Rotation: CW



Reference number

CodeManufacturer
1006209669Bosch
233829Cargo
233829ZCargo
CQ2010127Cq
DRV1393Electrolog
225523Era
2206 Ghibaudi
SDB1829Krauf
SDB9929Krauf
1012375Powermax
81012375Powermax
11-669Stemot
28011-0B020Toyota
52-42-99Visnova
SDV38106Woodauto
1.01.1107.0Zen
1107Zen
ZN1107Zen


Usage

BrandModelTypeYearNote
As-plS0471starter motors
BOSCH0001109034starter motors
TOYOTA281000B020starter motors
