SD0148


Code: SD0148
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

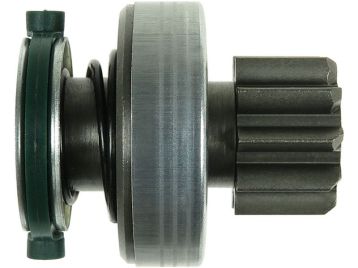

Brand new AS-PL Starter motor drive


I.d.1: 12.00 mm
L.1: 62.00 mm
L.2: 25.70 mm
Teeth: 10
Splines: 10
O.d.1: 53.00 mm
O.d.2: 33.00 mm
Rotation: CW


Reference number

CodeManufacturer
UD803597(BOSCH)SDAs-pl
1006209666Bosch
1006209791Bosch
1006209936Bosch
1006210121Bosch
1006210163Bosch
234158Cargo
CQ2010787Cq
DRV1219Electrolog
DRV1219iElectrolog
225695Era
2296Ghibaudi
SDB1158Krauf
SDB9158Krauf
940113020479Magneti Marelli
1010419Powermax
81010419Powermax
11-666Stemot
62-42-20Visnova
54-91180Wai / Transpo
SDV38203Woodauto
1.01.1631.0Zen
1631Zen
ZN1631Zen


Usage

BrandModelTypeYearNote
As-plS0176starter motors
As-plS0177starter motors
As-plS0191starter motors
BOSCH0001109021starter motors
BOSCH0001109022starter motors
BOSCH0001109066starter motors
BOSCH0001109067starter motors
BOSCH0001109258starter motors
BOSCH0001109259starter motors
BOSCH0001109260starter motors
BOSCH0001109261starter motors
