SD0149
Code: SD0149
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

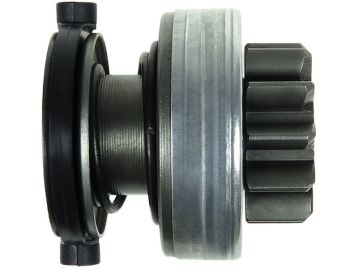

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 48.50 mm
L.2: 13.00 mm
Teeth: 11
Splines: 10
O.d.1: 47.80 mm
O.d.2: 34.60 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| 1006209695 | Bosch | |
| F000AL1432 | Bosch | |
| F000AL1690 | Bosch | |
| 235440 | Cargo | |
| 235440Z | Cargo | |
| 333186 | Cargo | |
| CQ2011052 | Cq | |
| DRV1140 | Electrolog | |
| 225652 | Era | |
| 2354 | Ghibaudi | |
| 4.5051.1 | Ika | |
| SDB1440 | Krauf | |
| SDB8440 | Krauf | |
| 1014772 | Powermax | |
| 81014772 | Powermax | |
| 11-695 | Stemot | |
| 28011-0D030 | Toyota | |
| BOS1006209695 | Woodauto | |
| SDV3911 | Woodauto | |
| 1547 | Zen | |
| ZN1547 | Zen |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S0168 | starter motors | ||
| BOSCH | 0001107088 | starter motors | ||
| BOSCH | F000AL0106 | starter motors |
