SD0154


Code: SD0154

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

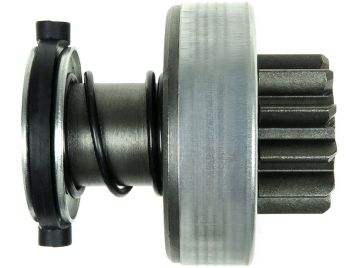

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 64.50 mm

L.2: 16.50 mm

Teeth: 11

Splines: 10

O.d.1: 58.20 mm

O.d.2: 35.20 mm

Rotation: CW



Reference number

CodeManufacturer
9002336230Bosch
137275Cargo
CQ2010730Cq
5460-2111Dixie
DRV1023Electrolog
225420Era
2110 Ghibaudi
01319429Khd
1319429Khd
SDB1275Krauf
SDB9275Krauf
940113020302Magneti Marelli
1014054Powermax
81014054Powermax
19-230Stemot
52-42-57Visnova
54-9192Wai / Transpo
54-9192-1Wai / Transpo
54-9192-ZENWai / Transpo
61-15-6580Wilson
SDV38170Woodauto
0929Zen
1.01.0929.0Zen
ZN0929Zen


Usage

BrandModelTypeYearNote
As-plS0066starter motors
BOSCH0001218172starter motors
BOSCH0001218772starter motors
