SD0156


Code: SD0156
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

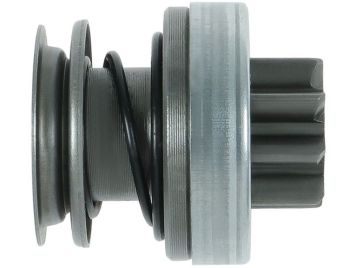

Brand new AS-PL Starter motor drive


I.d.1: 11.00 mm
L.1: 48.70 mm
L.2: 12.50 mm
Teeth: 8
Splines: 10
O.d.1: 45.00 mm
O.d.2: 27.00 mm
Rotation: CW


Reference number

CodeManufacturer
1006209794Bosch
1006209810Bosch
1006209820Bosch
6004AHS018Bosch
235290Cargo
239903Cargo
CQ2012542Cq
5460-1026Dixie
DRV1415Electrolog
225651Era
6108Ghibaudi
SDB1290Krauf
SDB1290PNKrauf
1015973Powermax
81015973Powermax
060.000.107Psh
11-810Stemot
54-91102Wai / Transpo
54-91102-ZENWai / Transpo
SDV38010Woodauto
1.01.1545.0Zen
1545 Zen
ZN1545Zen


Usage

BrandModelTypeYearNote
As-plS0102starter motors
As-plS0121starter motors
BOSCH0001107415starter motors
BOSCH0001107431starter motors
BOSCH0001107432starter motors
BOSCH0001107438starter motors
BOSCH0001107439starter motors
BOSCH6004AA0027starter motors
