  5. SD0223P



SD0223P


Code: SD0223P

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

PREMIUM LINE

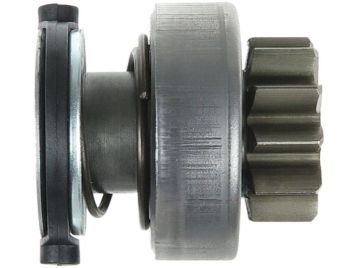

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 51.20 mm

L.2: 14.40 mm

Teeth: 11

Splines: 10

O.d.1: 48.50 mm

O.d.2: 35.20 mm

Rotation: CW



Reference number

CodeManufacturer
UD18977SDAs-pl
1006209866Bosch
1006210108Bosch
335189Cargo
DRV1455Electrolog
6256Ghibaudi
SDB9866Krauf
62-42-93New Vis
11-866Stemot
3132062MA0000Suzuki
31320T62MA0000Suzuki


Usage

BrandModelTypeYearNote
As-plS0314starter motors
As-plS0621Sstarter motors
BOSCH0001138009starter motors
BOSCH0001138071starter motors
