SD0257


Code: SD0257
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

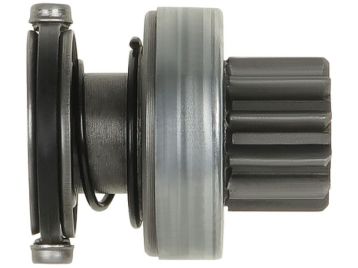

Brand new AS-PL Starter motor drive


I.d.1: 12.00 mm
L.1: 56.00 mm
L.2: 20.30 mm
Teeth: 11
Splines: 10
O.d.1: 48.00 mm
O.d.2: 29.40 mm
Rotation: CW


Reference number

CodeManufacturer
UD01833SDAs-pl
1006210226Bosch
DRV1514Electrolog
SDB8039Krauf
72-42-02New Vis
28011-0X040Toyota


Usage

BrandModelTypeYearNote
As-plS0484starter motors
BOSCH0001138039starter motors
BOSCH0001138063starter motors
BOSCH0001138064starter motors
