SD1010
Code: SD1010
Category: Starter drives
Manufacturer: DELCO
Supplier: As-pl
STANDARD LINE

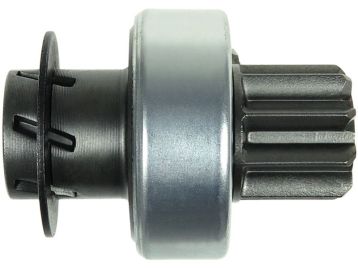

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 62.00 mm
L.2: 22.00 mm
Teeth: 9
Splines: 6
O.d.1: 46.00 mm
O.d.2: 26.00 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| 138222 | Cargo | |
| CQ2010456 | Cq | |
| 10476642 | DELCO | |
| 5401-1709 | Dixie | |
| DRV2687 | Electrolog | |
| 225329 | Era | |
| SDD2222 | Krauf | |
| 940113020239 | Magneti Marelli | |
| AMB0239 | Magneti Marelli | |
| 81010963 | Powermax | |
| 060.000.492 | Psh | |
| 03-009 | Stemot | |
| 54-156 | Wai / Transpo | |
| 54-156-1 | Wai / Transpo | |
| 61-01-3500 | Wilson | |
| SDV32422 | Woodauto | |
| 0774 | Zen | |
| 1.01.0774.0 | Zen | |
| ZN0774 | Zen | |
| 18222 | Znp |
Usage
| Brand | Model | Type | Year | Note |
| DELCO | 10465294 | starter motors | ||
| DELCO | 323489 | starter motors | ||
| DELCO | 9000805 | starter motors | ||
| DELCO | 9000812 | starter motors |
