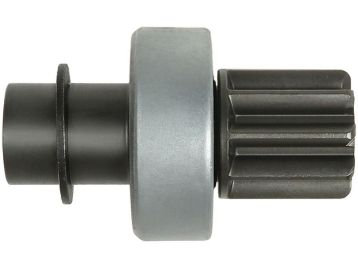

SD2036


Code: SD2036
Category: Starter drives
Manufacturer: Hitachi
Supplier: As-pl
STANDARD LINE
Brand new AS-PL Starter motor drive


I.d.1: 12.50 mm
L.1: 77.00 mm
L.2: 31.40 mm
Teeth: 9
Splines: 10
O.d.1: 48.30 mm
O.d.2: 29.50 mm
Rotation: CW


Reference number

CodeManufacturer
132448Cargo
CQ2010400Cq
DRV3103Electrolog
225370Era
2114-15508Hitachi
5811230360Isuzu
1012016Powermax
54-8140Wai / Transpo
54-8140-9Wai / Transpo
SDV38562Woodauto
1.01.0832.0Zen


Usage

BrandModelTypeYearNote
HITACHIS114385starter motors
HITACHIS114387starter motors
HITACHIS114396starter motors
HITACHIS114396Dstarter motors
HITACHIS114411starter motors
HITACHIS114412starter motors
HITACHIS114614starter motors
ISUZU5811001920starter motors
ISUZU5811001921starter motors
ISUZU5811002151starter motors
