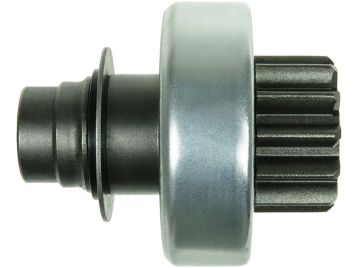

SD3004


Code: SD3004

Category: Starter drives

Manufacturer: Valeo

Supplier: As-pl

STANDARD LINE

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 60.70 mm

L.2: 16.00 mm

Teeth: 12

Splines: 9

O.d.1: 54.00 mm

O.d.2: 32.00 mm

Rotation: CW



Reference number

CodeManufacturer
131999Cargo
CQ2010482Cq
DRV0037Electrolog
225281Era
1551Ghibaudi
4.5004.1Ika
SDV7999Krauf
940113020210Magneti Marelli
AMB0210Magneti Marelli
1011113Powermax
81011113Powermax
060.000.901Psh
7701032827Renault
105538Valeo
182047Valeo
185182Valeo
594245Valeo
NE209Valeo
NE883Valeo
26-46-57Visnova
54-9424Wai / Transpo
61-20-24053Wilson
SDV3771Woodauto
0656Zen
1.01.0656.0Zen
ZN0656Zen
18325Znp


Usage

BrandModelTypeYearNote
VALEO432538starter motors
VALEO433310starter motors
VALEOD9R134starter motors
VALEOD9R73starter motors
