SD3015


Code: SD3015

Category: Starter drives

Manufacturer: Valeo

Supplier: As-pl

STANDARD LINE

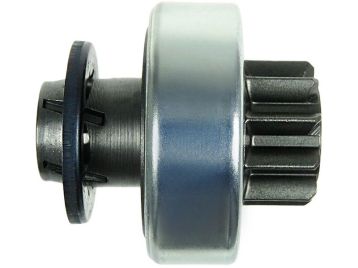

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 51.50 mm

L.2: 14.60 mm

Teeth: 10

Splines: 5

O.d.1: 49.40 mm

O.d.2: 28.00 mm

Rotation: CW



Reference number

CodeManufacturer
UD15627SDAs-pl
UD16828SDAs-pl
UD809412(VALEO)SDAs-pl
137733Cargo
CQ2010370Cq
DRV0010Electrolog
225573Era
1999Ghibaudi
1014536Powermax
81014536Powermax
05-024Stemot
186604Valeo
186798Valeo
187961Valeo
190407Valeo
594177Valeo
594252Valeo
NE877Valeo
36-46-10Visnova
54-9442Wai / Transpo
SDV38164Woodauto
1.01.0833.1Zen
1209Zen
ZN1209Zen


Usage

BrandModelTypeYearNote
As-plS3174Sstarter motors
As-plUD21185Sstarter motors
VALEO626002starter motors
VALEOD6RA100starter motors
VALEOD6RA105starter motors
VALEOD6RA107starter motors
VALEOD6RA109starter motors
VALEOD6RA114starter motors
VALEOD6RA133starter motors
VALEOD6RA162starter motors
VALEOD6RA163starter motors
VALEOD6RA169starter motors
VALEOD6RA249starter motors
VALEOD6RA293starter motors
VALEOD6RA33starter motors
VALEOD6RA39starter motors
VALEOD6RA56starter motors
VALEOD6RA59starter motors
VALEOD6RA62starter motors
VALEOD6RA63starter motors
VALEOD6RA70starter motors
VALEOD6RA73starter motors
VALEOD6RA82starter motors
VALEOD6RA83starter motors
VALEOD6RA92starter motors
VALEOD6RA93starter motors
VALEOD6RAD183starter motors
VALEOD6RADP359starter motors
