SD4002
Code: SD4002
Category: Starter drives
Manufacturer: Magneti Marelli
Supplier: As-pl
STANDARD LINE

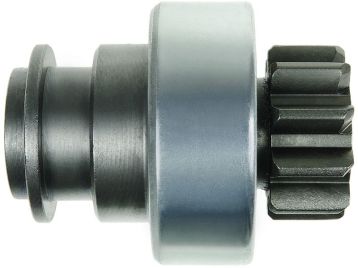

Brand new AS-PL Starter motor drive
I.d.1: 17.00 mm
L.1: 73.50 mm
L.2: 20.60 mm
Teeth: 10
Splines: 12
O.d.1: 58.60 mm
O.d.2: 39.50 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| UD43018SD | As-pl | |
| 130452 | Cargo | |
| CDR25100 | Casco | |
| CQ2010936 | Cq | |
| DRV4063 | Electrolog | |
| 225070 | Era | |
| 2013 | Ghibaudi | |
| 2907 | Ghibaudi | |
| SDL5452 | Ghibaudi | |
| SDL5452PN | Krauf | |
| SDL9452 | Krauf | |
| 054247034010 | Lucas | |
| 054268141010 | Lucas | |
| 054294922010 | Lucas | |
| 085541454010 | Lucas | |
| 085541479010 | Lucas | |
| 085541490010 | Lucas | |
| 26253078 | Lucas | |
| 54247034 | Lucas | |
| 54247036 | Lucas | |
| 54247134 | Lucas | |
| 54268141 | Lucas | |
| 54294922 | Lucas | |
| 54295155 | Lucas | |
| 60600024 | Lucas | |
| TMB120 | Lucas | |
| TNB108 | Lucas | |
| TNB165 | Lucas | |
| 85541454 | Magneti Marelli | |
| 85541479 | Magneti Marelli | |
| 85541490 | Magneti Marelli | |
| 1011092 | Powermax | |
| 81011092 | Powermax | |
| SDR25100 | Sando | |
| 25-44-31 | Visnova | |
| 54-9200 | Wai / Transpo | |
| 54-9200-1 | Wai / Transpo | |
| 54-9200-1-G | Wai / Transpo | |
| SDV3116 | Woodauto | |
| 1.01.0155.0 | Zen |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S4001 | starter motors | ||
| As-pl | S4002 | starter motors | ||
| As-pl | S4054 | starter motors | ||
| LUCAS | 26148 | starter motors | ||
| LUCAS | 26196 | starter motors | ||
| LUCAS | 26256 | starter motors | ||
| LUCAS | 26259 | starter motors | ||
| LUCAS | 26264 | starter motors | ||
| LUCAS | 26271 | starter motors | ||
| LUCAS | 26281 | starter motors | ||
| LUCAS | 26283 | starter motors | ||
| LUCAS | 26294 | starter motors | ||
| LUCAS | 26413 | starter motors | ||
| LUCAS | 27480 | starter motors | ||
| LUCAS | 27486 | starter motors | ||
| LUCAS | 27487 | starter motors | ||
| LUCAS | 27488 | starter motors | ||
| LUCAS | 27510 | starter motors | ||
| LUCAS | 27515 | starter motors | ||
| LUCAS | 27518 | starter motors | ||
| LUCAS | 27539 | starter motors | ||
| LUCAS | 27541 | starter motors | ||
| LUCAS | 27541A | starter motors | ||
| LUCAS | 27565 | starter motors | ||
| LUCAS | 27568 | starter motors | ||
| LUCAS | 27570 | starter motors | ||
| LUCAS | 27572 | starter motors | ||
| LUCAS | 27578 | starter motors | ||
| LUCAS | 27583 | starter motors | ||
| LUCAS | 27592 | starter motors | ||
| LUCAS | 27594 | starter motors | ||
| LUCAS | LRS106 | starter motors | ||
| LUCAS | LRS195 | starter motors | ||
| LUCAS | LRS301 | starter motors | ||
| LUCAS | S4013 | starter motors |
