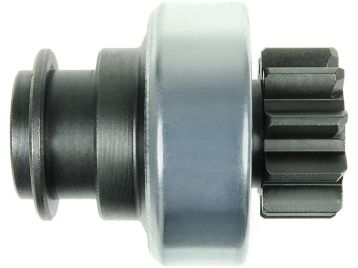

SD4003


Code: SD4003

Category: Starter drives

Manufacturer: Lucas

Supplier: As-pl

STANDARD LINE

Brand new AS-PL Starter motor drive



I.d.1: 17.00 mm

L.1: 72.00 mm

L.2: 21.00 mm

Teeth: 10

Splines: 12

O.d.1: 59.60 mm

O.d.2: 40.50 mm

Rotation: CW



Reference number

CodeManufacturer
130453Cargo
CQ2010151Cq
DRV4079Electrolog
2831Ghibaudi
SDL5453Krauf
SDL9453Krauf
26252342Lucas
54244938Lucas
54246285Lucas
54246654Lucas
60600066Lucas
TMB100Lucas
1015176Powermax
25-44-32Visnova
54-9203Wai / Transpo
54-9203-1Wai / Transpo
SDV3117Woodauto
0150Zen
1.01.0150.0Zen
ZN0150Zen


Usage

BrandModelTypeYearNote
LUCAS26246Mstarter motors
LUCAS26246MM50starter motors
LUCAS26273Estarter motors
LUCAS26273Fstarter motors
LUCAS26273Hstarter motors
LUCAS26273Mstarter motors
LUCAS26274Estarter motors
LUCAS26274Fstarter motors
LUCAS26274Hstarter motors
LUCAS26274Nstarter motors
LUCAS26290Bstarter motors
LUCAS26294Dstarter motors
LUCAS26294Estarter motors
LUCAS26294Fstarter motors
LUCAS26294Qstarter motors
LUCAS26295Dstarter motors
LUCAS26295Qstarter motors
LUCAS26304Dstarter motors
LUCAS26323Astarter motors
LUCAS26323AM50starter motors
LUCAS26343Astarter motors
LUCAS26343Kstarter motors
LUCAS26344Astarter motors
LUCAS26344Fstarter motors
LUCAS26345Astarter motors
LUCAS26345Jstarter motors
LUCAS26351Astarter motors
LUCAS26351Hstarter motors
LUCAS26357Astarter motors
LUCAS26357Estarter motors
LUCAS26358Astarter motors
LUCAS26358Hstarter motors
LUCAS26365Astarter motors
LUCAS26365Fstarter motors
LUCAS26366Astarter motors
LUCAS26366Fstarter motors
LUCAS26369Astarter motors
LUCAS26369Jstarter motors
LUCAS26374Astarter motors
LUCAS26374Fstarter motors
LUCAS26376Astarter motors
LUCAS26376Lstarter motors
LUCAS26378Astarter motors
LUCAS26378Hstarter motors
LUCAS26393Astarter motors
LUCAS26393Fstarter motors
LUCAS26403Astarter motors
LUCAS26403Dstarter motors
LUCAS26404Astarter motors
LUCAS26404ADM50starter motors
LUCAS26404Dstarter motors
LUCAS26408Astarter motors
LUCAS26408Estarter motors
LUCAS26409Astarter motors
LUCAS26409Estarter motors
LUCAS26410Astarter motors
LUCAS26410Bstarter motors
LUCAS26411Astarter motors
LUCAS26411Bstarter motors
LUCAS26414Astarter motors
LUCAS26414Estarter motors
LUCAS26427Astarter motors
LUCAS26427AM50starter motors
LUCAS26436Astarter motors
LUCAS26436Bstarter motors
