  5. SD4005P



SD4005P


Code: SD4005P

Category: Starter drives

Manufacturer: Magneti Marelli

Supplier: As-pl

PREMIUM LINE

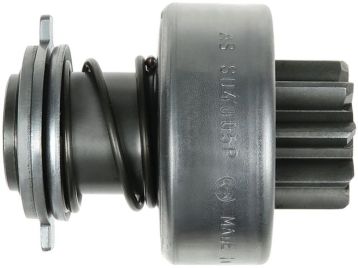

Brand new AS-PL Starter motor drive



I.d.1: 14.30 mm

L.1: 77.50 mm

L.2: 18.20 mm

Teeth: 9

Splines: 6

O.d.1: 60.00 mm

O.d.2: 34.70 mm

Rotation: CW



Reference number

CodeManufacturer
UD15645SDAs-pl
131109Cargo
CDR30101Casco
DRV9112Electrolog
225163Era
79023774Fiat
9929081Fiat
9935731Fiat
9936772Fiat
9957707Fiat
9986112Fiat
3040 Ghibaudi
3090Ghibaudi
072139001010Lucas
72139001Magneti Marelli
72363402Magneti Marelli
72397101Magneti Marelli
1015736Powermax
22404101BNReal
SDR30101Sando
01-41-78Visnova
21-41-21Visnova
54-9300Wai / Transpo
SDV3720Woodauto
0407Zen
1.01.0407.0Zen
ZN0407Zen


Usage

BrandModelTypeYearNote
LUCAS063216727010starter motors
LUCAS063216740010starter motors
LUCAS063216827010starter motors
LUCAS063216898010starter motors
LUCAS063217118010starter motors
LUCAS063217119010starter motors
LUCAS063217120010starter motors
LUCAS063217125010starter motors
LUCAS063217147010starter motors
LUCAS063217225010starter motors
MAGNETI MARELLI63216703starter motors
MAGNETI MARELLI63216707starter motors
MAGNETI MARELLI63216725starter motors
MAGNETI MARELLI63216726starter motors
MAGNETI MARELLI63216727starter motors
MAGNETI MARELLI63216740starter motors
MAGNETI MARELLI63216800starter motors
MAGNETI MARELLI63216808starter motors
MAGNETI MARELLI63216825starter motors
MAGNETI MARELLI63216826starter motors
MAGNETI MARELLI63216827starter motors
MAGNETI MARELLI63216852starter motors
MAGNETI MARELLI63216873starter motors
MAGNETI MARELLI63216898starter motors
MAGNETI MARELLI63217101starter motors
MAGNETI MARELLI63217104starter motors
MAGNETI MARELLI63217105starter motors
MAGNETI MARELLI63217118starter motors
MAGNETI MARELLI63217119starter motors
MAGNETI MARELLI63217120starter motors
MAGNETI MARELLI63217125starter motors
MAGNETI MARELLI63217147starter motors
MAGNETI MARELLI63217201starter motors
MAGNETI MARELLI63217225starter motors
MAGNETI MARELLIMT62BAstarter motors
MAGNETI MARELLIMT67Astarter motors
MAGNETI MARELLIMT67ABstarter motors
MAGNETI MARELLIMT67Cstarter motors
MAGNETI MARELLIMT67CAstarter motors
MAGNETI MARELLIMT68Astarter motors
MAGNETI MARELLIMT68AAstarter motors
MAGNETI MARELLIMT68ABstarter motors
MAGNETI MARELLIMT68ACstarter motors
MAGNETI MARELLIMT68Hstarter motors
MAGNETI MARELLIMT68LAstarter motors
MAGNETI MARELLIMT68LBstarter motors
MAGNETI MARELLIMT71Astarter motors
MAGNETI MARELLIMT71AAstarter motors
MAGNETI MARELLIMT71Dstarter motors
MAGNETI MARELLIMT71DAstarter motors
MAGNETI MARELLIMT71Estarter motors
MAGNETI MARELLIMT71Tstarter motors
MAGNETI MARELLIMT72Astarter motors
MAGNETI MARELLIMT72AAstarter motors
