SD4027


Code: SD4027

Category: Starter drives

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

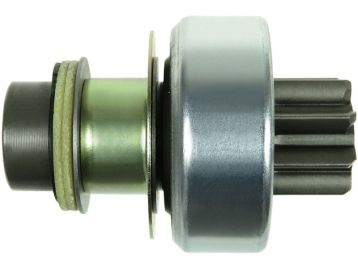

Brand new AS-PL Starter motor drive



I.d.1: 11.60 mm

L.1: 64.50 mm

L.2: 16.00 mm

Teeth: 8

Splines: 12

O.d.1: 45.30 mm

O.d.2: 23.40 mm

Rotation: CW



Reference number

CodeManufacturer
SD4027As-pl
139655Cargo
232201Cargo
CDR30103ASCasco
CQ2010241Cq
DRV9003Electrolog
225464Era
2074Ghibaudi
4.5197.1Ika
SDE5655Krauf
85541280Magneti Marelli
85541870Magneti Marelli
940113170336Magneti Marelli
AMBQ0336Magneti Marelli
81016794Powermax
22404301BNReal
SDR30103.0Sando
00-017Stemot
54-9308Wai / Transpo
18771Znp


Usage

BrandModelTypeYearNote
As-plS4025starter motors
As-plS4028starter motors
MAGNETI MARELLI63101015starter motors
MAGNETI MARELLI63101018starter motors
MAGNETI MARELLI63101021starter motors
MAGNETI MARELLI63101022starter motors
MAGNETI MARELLI63101023starter motors
MAGNETI MARELLI63102018starter motors
MAGNETI MARELLI63102020starter motors
MAGNETI MARELLI63102021starter motors
MAGNETI MARELLI63102022starter motors
MAGNETI MARELLI63103007starter motors
MAGNETI MARELLI63103008starter motors
MAGNETI MARELLI63103015starter motors
MAGNETI MARELLI63103022starter motors
MAGNETI MARELLI63103023starter motors
MAGNETI MARELLI63103024starter motors
MAGNETI MARELLI63103031starter motors
