SD4032
Code: SD4032
Category: Starter drives
Manufacturer: Magneti Marelli
Supplier: As-pl
STANDARD LINE

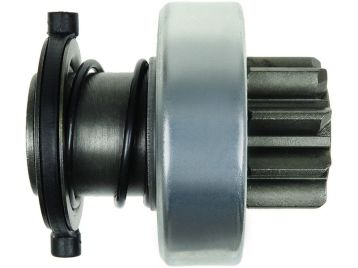

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 64.50 mm
L.2: 18.00 mm
Teeth: 9
Splines: 10
O.d.1: 58.60 mm
O.d.2: 34.50 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| 139902 | Cargo | |
| CDR30102 | Casco | |
| CQ2010503 | Cq | |
| DRV4194 | Electrolog | |
| 225483 | Era | |
| 9948135 | Fiat | |
| 2092 | Ghibaudi | |
| SDE5902 | Krauf | |
| SDE5902HS | Krauf | |
| SDE5902PN | Krauf | |
| 085541700010 | Lucas | |
| 83226569 | Magneti Marelli | |
| 85541700 | Magneti Marelli | |
| 1012086 | Powermax | |
| 81012086 | Powermax | |
| SDR30102 | Sando | |
| 21-41-32 | Visnova | |
| SDV37625 | Woodauto | |
| 1.01.1025.0 | Zen |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S4017 | starter motors | ||
| LUCAS | 063114014010 | starter motors | ||
| MAGNETI MARELLI | 63114014 | starter motors | ||
| MAKO | 063114014000 | starter motors |
