SD4040


Code: SD4040

Category: Starter drives

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

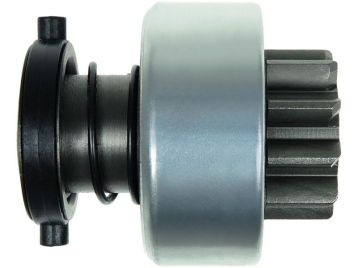

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 71.80 mm

L.2: 17.00 mm

Teeth: 10

Splines: 10

O.d.1: 61.70 mm

O.d.2: 40.00 mm

Rotation: CW



Reference number

CodeManufacturer
SD4040As-pl
235663Cargo
333865Cargo
CQ2012608Cq
DRV9016Electrolog
2391Ghibaudi
SDE3663Krauf
SDE3663PNKrauf
1017511Powermax
54-9314Wai / Transpo


Usage

BrandModelTypeYearNote
As-plS4029starter motors
As-plS4030starter motors
DENSO4280001380starter motors
MAGNETI MARELLI63280040starter motors
MAGNETI MARELLI63280041starter motors
PERKINS2873K404starter motors
PERKINS2873K405starter motors
