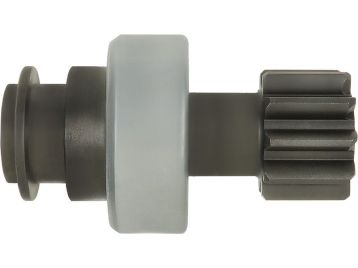

SD4048


Code: SD4048
Category: Starter drives
Manufacturer: Magneti Marelli
Supplier: As-pl
STANDARD LINE
Brand new AS-PL Starter motor drive


I.d.1: 17.00 mm
L.1: 100.50 mm
L.2: 48.00 mm
Teeth: 10
Splines: 12
O.d.1: 58.80 mm
O.d.2: 39.40 mm
Rotation: CW


Reference number

CodeManufacturer
130897Cargo
CQ2010491Cq
DRV4067Electrolog
SDL0897Krauf
SDL0897PNKrauf
54243781Lucas
54246662Lucas
60600050Lucas
TMB102Lucas
1013256Powermax
54-9204Wai / Transpo
54-9204-1Wai / Transpo
54-9204-5Wai / Transpo
SDV3121Woodauto
1.01.0286.0Zen


Usage

BrandModelTypeYearNote
LUCAS24616starter motors
LUCAS26148starter motors
LUCAS26157starter motors
LUCAS26196starter motors
LUCAS26234starter motors
LUCAS26234Kstarter motors
LUCAS26283starter motors
LUCAS26336starter motors
LUCAS26336Astarter motors
LUCAS26336Fstarter motors
LUCAS26336Hstarter motors
LUCAS26336Qstarter motors
LUCAS26336Rstarter motors
LUCAS26337starter motors
LUCAS26337Astarter motors
LUCAS26337Bstarter motors
LUCAS26337Dstarter motors
LUCAS26337Hstarter motors
LUCAS26349starter motors
LUCAS26349Astarter motors
LUCAS26349Bstarter motors
LUCAS26349Dstarter motors
LUCAS26349Hstarter motors
LUCAS26363starter motors
LUCAS26363Astarter motors
LUCAS26363Bstarter motors
LUCAS26363Estarter motors
LUCAS26363Jstarter motors
LUCAS26367Astarter motors
LUCAS26367Dstarter motors
LUCAS26375starter motors
LUCAS26382Astarter motors
LUCAS26382Bstarter motors
LUCAS26384starter motors
LUCAS26384Astarter motors
LUCAS26384Bstarter motors
LUCAS26389Astarter motors
LUCAS26389Dstarter motors
LUCAS26398starter motors
LUCAS26398Astarter motors
LUCAS26398Estarter motors
LUCAS26398Fstarter motors
LUCAS26398Hstarter motors
LUCAS26416starter motors
LUCAS26416Astarter motors
LUCAS26416Dstarter motors
LUCAS26416Estarter motors
LUCAS26420starter motors
LUCAS26420Astarter motors
LUCAS26420Bstarter motors
LUCAS26421starter motors
LUCAS26421Astarter motors
LUCAS26421Bstarter motors
LUCAS26422starter motors
LUCAS26428starter motors
LUCAS26428Astarter motors
LUCAS26428Bstarter motors
LUCAS26429starter motors
LUCAS26429Astarter motors
LUCAS26429Bstarter motors
LUCAS26433starter motors
LUCAS26433Astarter motors
LUCAS26433Bstarter motors
LUCAS26435starter motors
LUCAS26435Astarter motors
LUCAS26435Bstarter motors
LUCAS27311starter motors
LUCAS27311Fstarter motors
LUCAS27417starter motors
LUCAS27435starter motors
LUCAS27478starter motors
LUCAS27486starter motors
LUCAS27508starter motors
LUCAS27543starter motors
LUCAS27575starter motors
LUCAS27586starter motors
LUCAS27604starter motors
LUCASNSB503starter motors
MAGNETI MARELLI63227486starter motors
PERKINS2873121starter motors
PERKINS2873121Tstarter motors
PERKINS2873125starter motors
PERKINS2873141starter motors
PERKINS2873A010starter motors
PERKINS2873A010Rstarter motors
PERKINS2873A102starter motors
PERKINS2873D003starter motors
PERKINS31179starter motors
