SD4085P


Code: SD4085P
Category: Starter drives
Manufacturer: Magneti Marelli
Supplier: As-pl
PREMIUM LINE

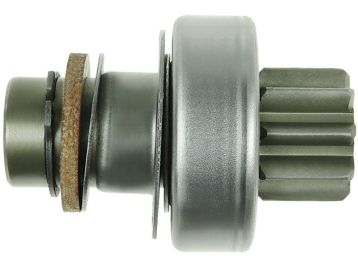

Brand new AS-PL Starter motor drive


I.d.1: 11.50 mm
L.1: 64.00 mm
L.2: 19.00 mm
Teeth: 9
Splines: 12
O.d.1: 44.70 mm
O.d.2: 25.20 mm
Rotation: CW


Reference number

CodeManufacturer
UD15252SDAs-pl
135717Cargo
DRV4191Electrolog
225332Era
9945556Fiat
9948346Fiat
1929Ghibaudi
4.5018.1Ika
SDL5717Krauf
085540971010Lucas
085541780010Lucas
85540971Magneti Marelli
85541780Magneti Marelli
940113170242Magneti Marelli
AMBQ0242Magneti Marelli
1016307Powermax
81016307Powermax
00-019Stemot
21-41-15Visnova
54-9310Wai / Transpo
54-9310-1Wai / Transpo
54-9310-ZENWai / Transpo
SDV38152Woodauto
0779Zen
1.01.0779.0Zen
ZN0779Zen


Usage

BrandModelTypeYearNote
MAGNETI MARELLI63101000starter motors
MAGNETI MARELLI63101002starter motors
MAGNETI MARELLI63101008starter motors
MAGNETI MARELLI63102003starter motors
MAGNETI MARELLI63102004starter motors
MAGNETI MARELLI63102007starter motors
MAGNETI MARELLI63102008starter motors
MAGNETI MARELLI63103002starter motors
MAGNETI MARELLI63103003starter motors
MAGNETI MARELLI63103025starter motors
MAGNETI MARELLI63103026starter motors
MAGNETI MARELLI63222889starter motors
MAGNETI MARELLI63222900starter motors
MAGNETI MARELLI63222901starter motors
MAGNETI MARELLI63222905starter motors
MAGNETI MARELLI63222908starter motors
MAGNETI MARELLI63222909starter motors
MAGNETI MARELLI63222936starter motors
MAGNETI MARELLI63223035starter motors
MAGNETI MARELLI63223085starter motors
MAGNETI MARELLI63223101starter motors
MAGNETI MARELLI63223108starter motors
MAGNETI MARELLI63223109starter motors
MAGNETI MARELLI63223200starter motors
MAGNETI MARELLI63223303starter motors
